Timing belt pulley T90 _14
Article Nr. 28.0082/3
Quantity
Comment
Add to inquiries
Questions about the product / Contact
CAD Download
Generate datasheet
3D View
Techn. Data / Items supplied
Applications

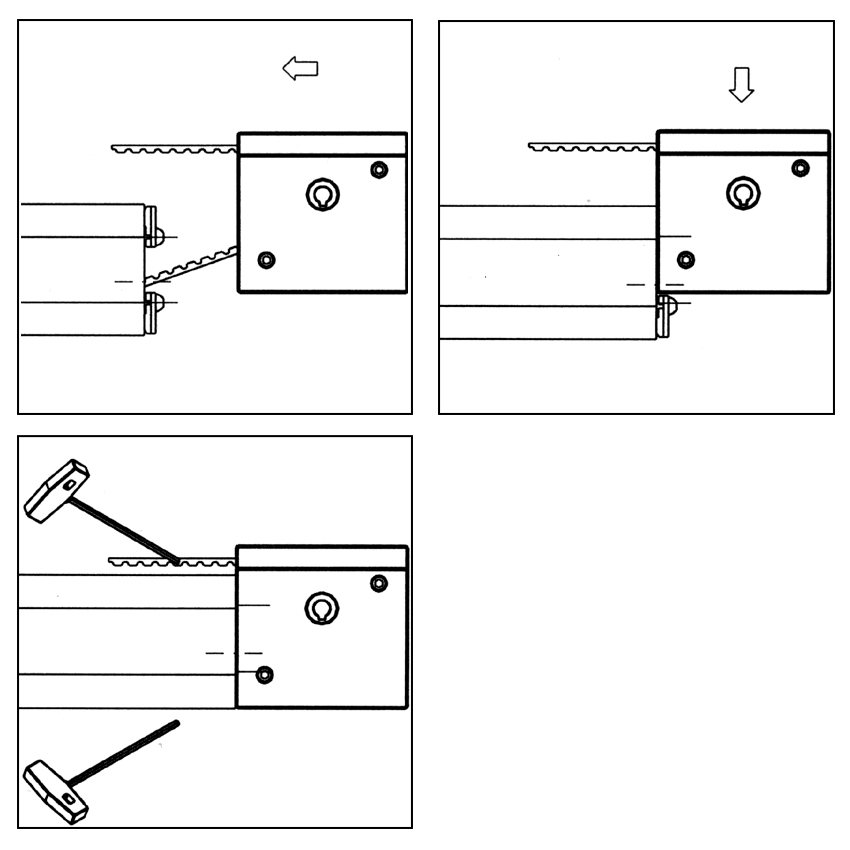

Assembly
Housing 3-piece, anodized aluminum
Connection elements, steel, galvanised
Aluminum pulley with stainless steel flanges for timing belt 32AT10
19 teeth, effective diameter 60.48 mm
Required toothed belt length within the deflection 210 mm
max. torque 130 Nm
Pulley with bore 14 mm and feather key groove 5 mm
2 ball-bearings
Weight = 2.800 kg/piece
