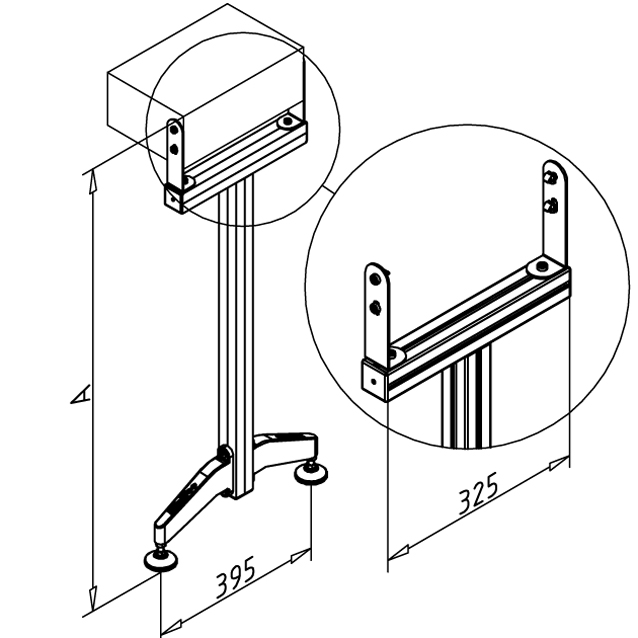

Subframe GKF 314

Article Nr. 29.1786/0
mm
  • Frame of profile 45x45 F
  • Two cantilever feet AL GD, grey
    powder coated
  • Hinged foot M10 Ø60 mm, plastic with anti-slip insert
  • Completely mounted incl. fixation material
  • Connection elements, steel, galvanised
  • State conveying height A in order
  • Weight = 3.44 kg for A=1000mm
