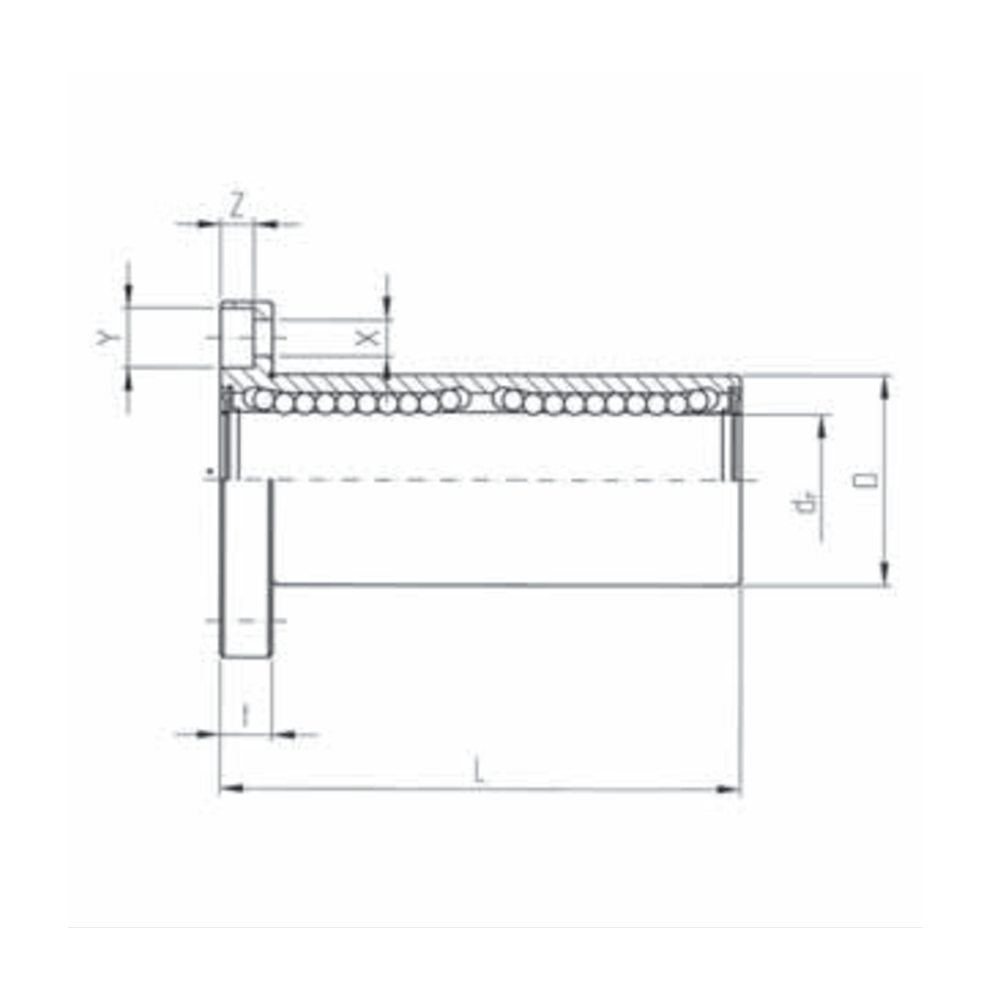

| Shaft diameter (dr) | 30 mm | +13/-2 µm |
| Outer diameter (D) | 47 mm | 0/-19 µm |
| Length (L) | 123 mm | ±300 µm |

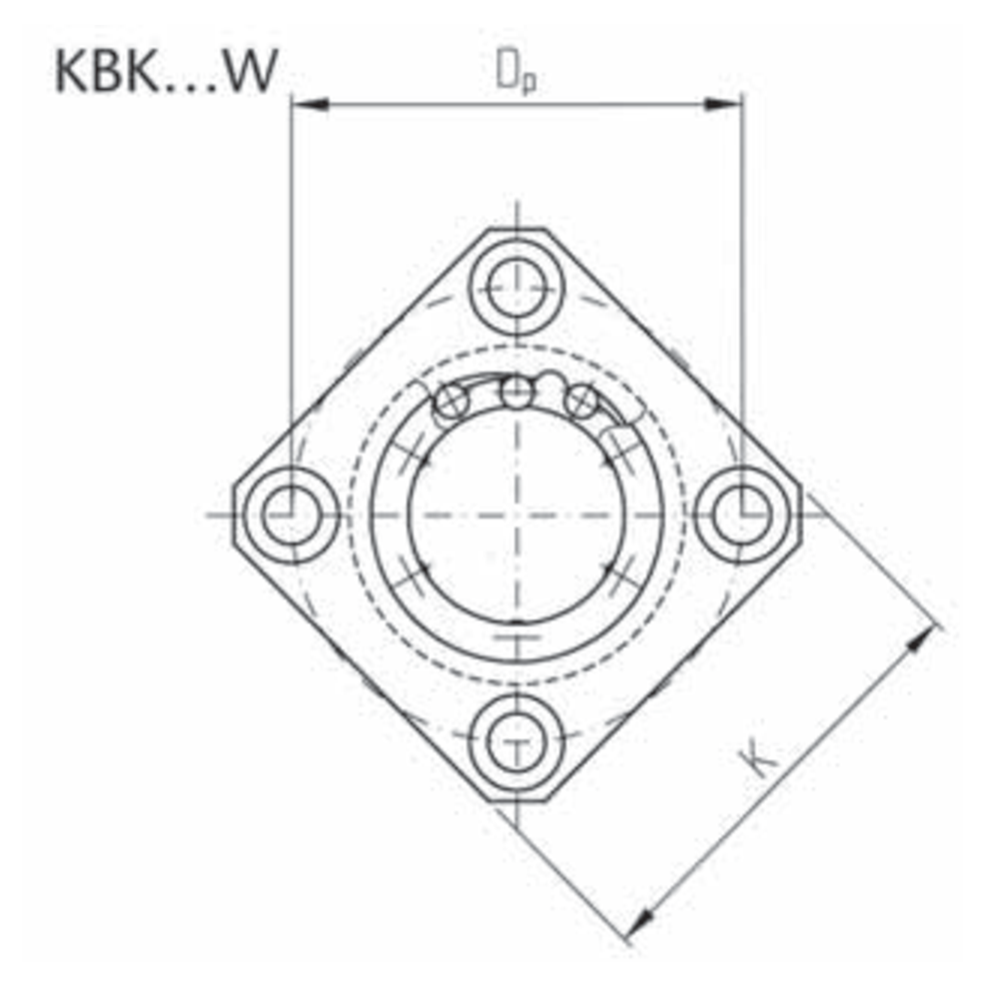

| Flange width (K) | 60 mm | |
| Flange thickness (t) | 10 mm | |
| Hole distance (Dp) | 62 mm | |
| Countersink depth (Z) | 6.1 mm | |
| Eccentricity | 17 µm | |
| Load rating dynamic (C) | 2500 N | |
| Static load rating (C0) | 5490 N | |
| Static moment (M0) | 78.9 Nm | |
| Operating temperature | -20 / +110 °C |
