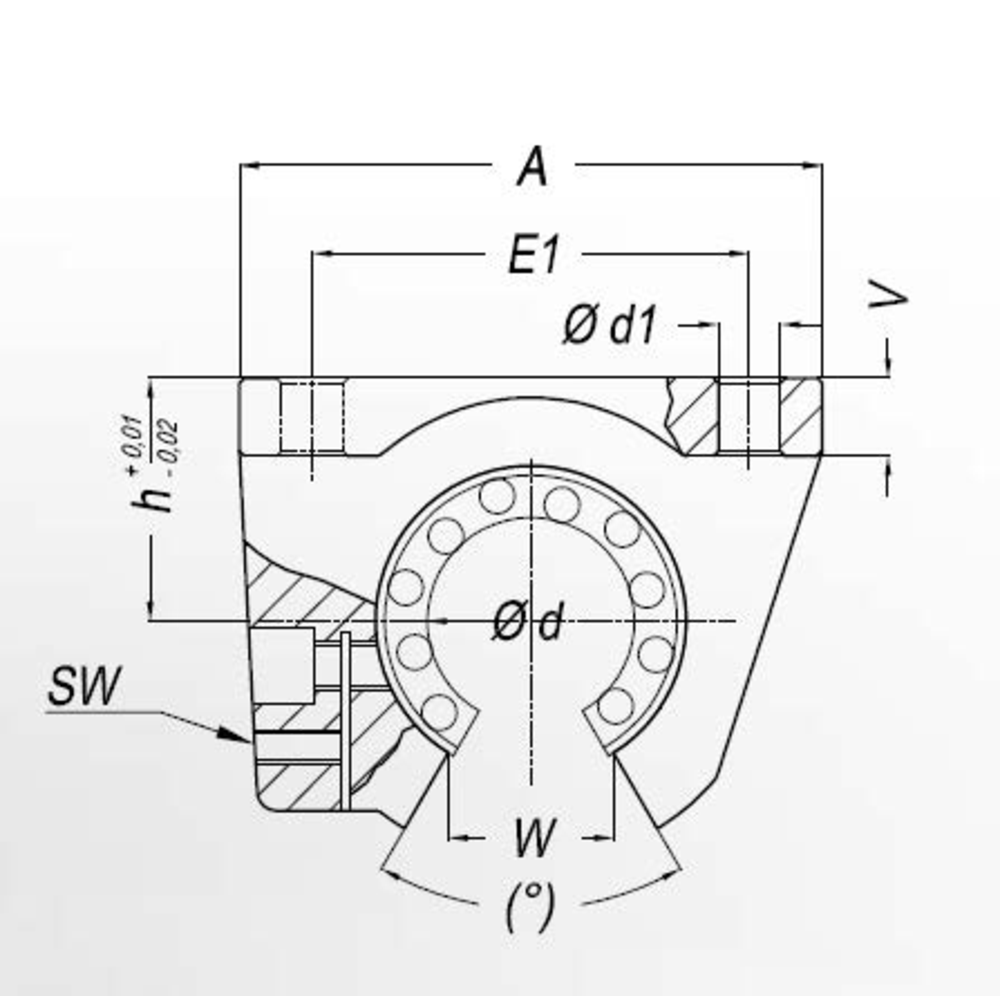

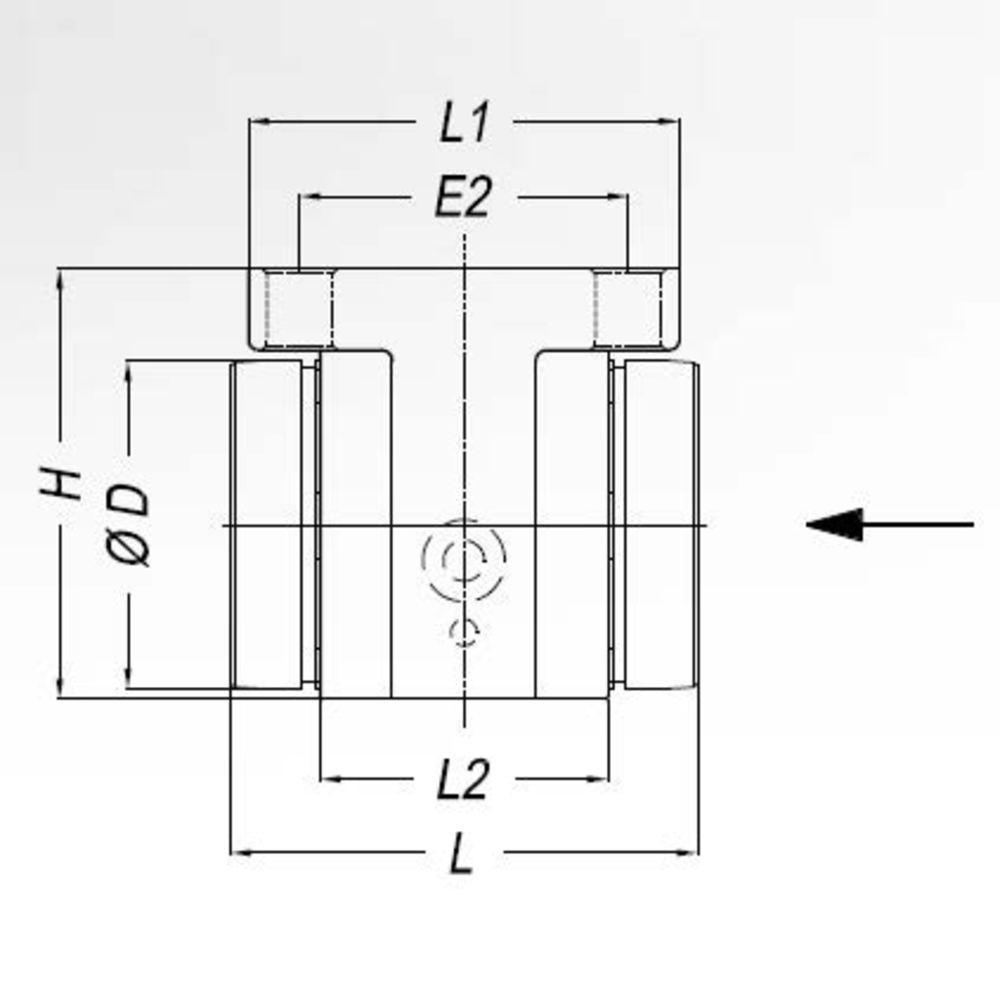

| Shaft diameter (d) | 20 mm | |
| Outer diameter (D) | 32 mm | |
| Dimension (A) | 60 mm | |
| Height (H) | 42 mm | |
| Height shaft (h) | 25 mm | |
| Length (L) | 45 mm | |
| Length (L1) | 42 mm | |
| Housing width (L1) | 28 mm | |
| Hole distance (E1) | 45 mm | ±0.15 mm |
| Hole distance (E2) | 32 mm | ±0.15 mm |
| Drilling diameter (d1) | 4.3 mm | |
| Flange thickness (V) | 8 mm | |
| Opening width (W) | 10.2 mm | |
| Wrench size (SW) | 2.5 mm | |
| Angle (α) | 60 ° |
